450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX

  • 450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
  • 450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
  • 450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
Lieu d'origine Fabriqué en Chine
Nom de marque TCY
Numéro de modèle PELLE RÉTRO JCB 3CX
Quantité de commande min 1
Détails d'emballage caisse en bois
Délai de livraison 2-3/Négocier
Conditions de paiement T/T, Alipay, Wechat...etc., Western Union, MoneyGram, D/P
Détails sur le produit
Modèle PELLE RÉTRO JCB 3CX Nom du produit  Anneau porteur
Numéro de pièce. 450/12702 MOQ 1 pièces
poids 2 kg Condition Nouveau
Nom de marque TCY
Laisser un message
Description de produit

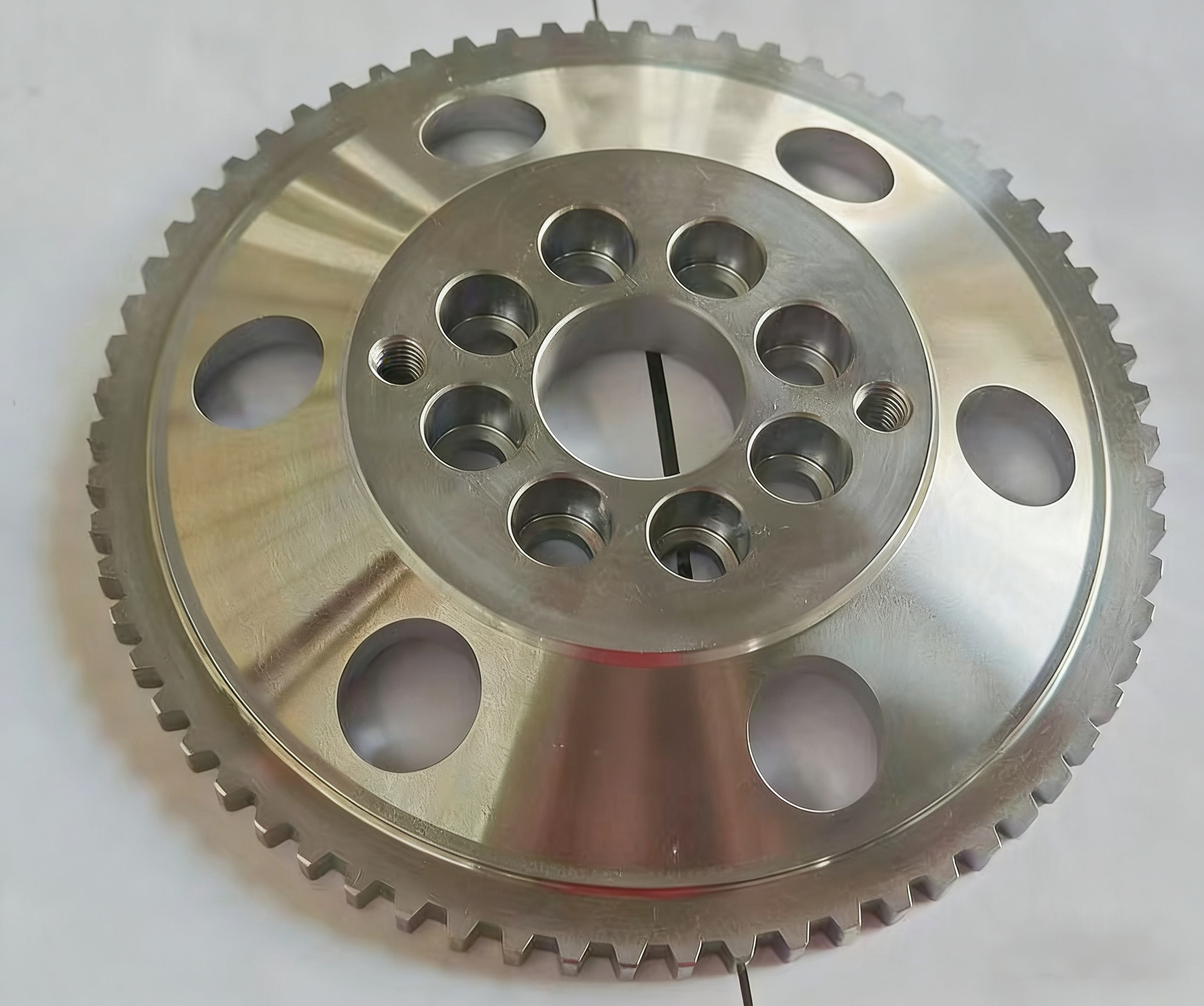

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX


Model: 3CX Part name:Carrier Annulus
Part NO.:450/12702 MOQ:1PCS
Packing:Wooden case Place of Origin:China
Aftersale service provided:Online support  Apply To:JCB BACKHOE 3CX
Delivery Time: 1-3 days Or negotiate Note: Other models can be consulted online



Product

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX 0

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX 1

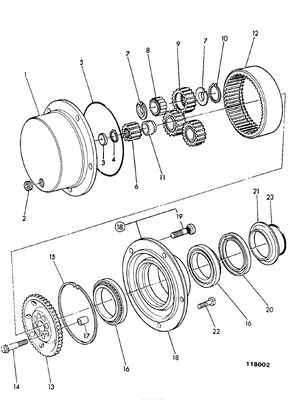

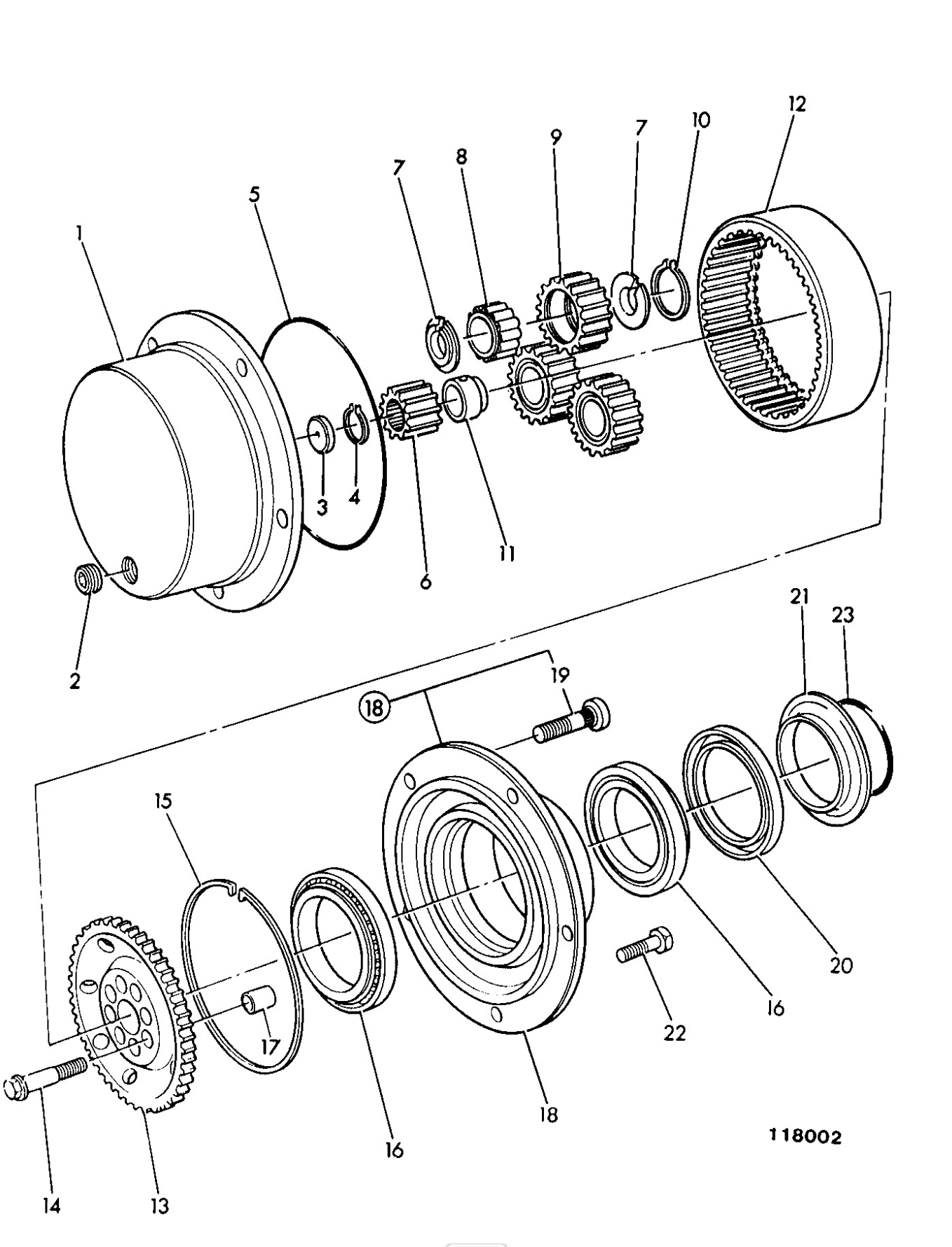

Pos. Part No Qty Parts name
1 450/12401 [2] Carrier planetary hub
2 826/00425 [2] Plug tapered 3/4"-14PTF
3 450/10208 [2] Pad Thrust
4 821/00216 [2] Circlip external
5 828/00196 [2] O Ring
6 450/12403 [2] Gear Sun
7 821/00209 [12] Circlip
8 907/50200 [6] Bearing Roller, Double Row
9 450/10206 [6] Gear Planet
10 2203/0054 [6] Circlip
11 921/50000 [2] Spacer 32mm long
12 450/10205 [2] Gear Annulus Ring
13 450/12702 [1] Carrier Annulus
14 826/01060 [16] Bolt M14 x 70mm long
15 821/00210 [2] Circlip Internal Square Section
16 907/52200 [4] Bearing Taper
17 450/12703 [8] Dowel Hollow
18 450/11100 [2] Hub c/w studs
19 826/00923 [5] Stud Wheel
20 904/50033 [2] Seal - Cassette
22 1321/0407Z [4] Bolt Coated M10 x 25

Exhibition

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX 2



Company Introduction

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX 3

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX 4

Packaging

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX 5



450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX 6




FAQ



Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.



Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.



Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.



Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be         prepared after receiving the payment. The preparation time depends on the content of the order.



Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
